UNOBAT 78+ | Sports Flooring

The UnoBat 78+ System represents the next evolution in sports flooring, building on the proven performance of the UnoBat 62+ to set a new standard for player safety, durability, and adaptability. The 27mm thick battens, are engineered to deliver superior impact reduction and consistent ball bounce for an exceptional playing experience.

Our newly designed wedge is equipped with the pre-attached shock-absorbing pads to ensure an improved connection between batten and wedge, minimizing the risk of separation during installation. This integration allows the UnoBat 78+ to be installed seamlessly over uneven subfloors.

The wedge and shock pad are now connected as a single component, making setup faster and more precise. For enhanced adaptability, the wedge spacing has been adjusted from 400mm to 16½” (420mm), a perfect match for the thicker battens, which can be set at construction heights from 78mm to 205mm to meet diverse project requirements.

Facts

PERFORMANCE

Area-elastic according to EN 14904 class A4

USE

All types of sport
Multi-functional sports halls
From small leisure centres to large arenas
Refurbishment

FLOORBOARD TYPE

Prefinished 22 mm 2-strip solid hardwood

SUBCONSTRUCTION

Single layer batten system

BATTEN CENTRE, C/C

Choice between 336 mm and 411 mm

REQUIRED SUBFLOOR

Even or uneven

CONSTRUCTION HEIGHT

3 ⁵/₆₄ (78 mm) to 8 ⁵/₆₄ (205 mm)

JUNCKERS 25 YEARS FATIGUE TEST

SANDING AND RE-SEALING

Yes to bare wood 8-10 times

SUITABLE FOR UNDERFLOOR HEATING

Yes

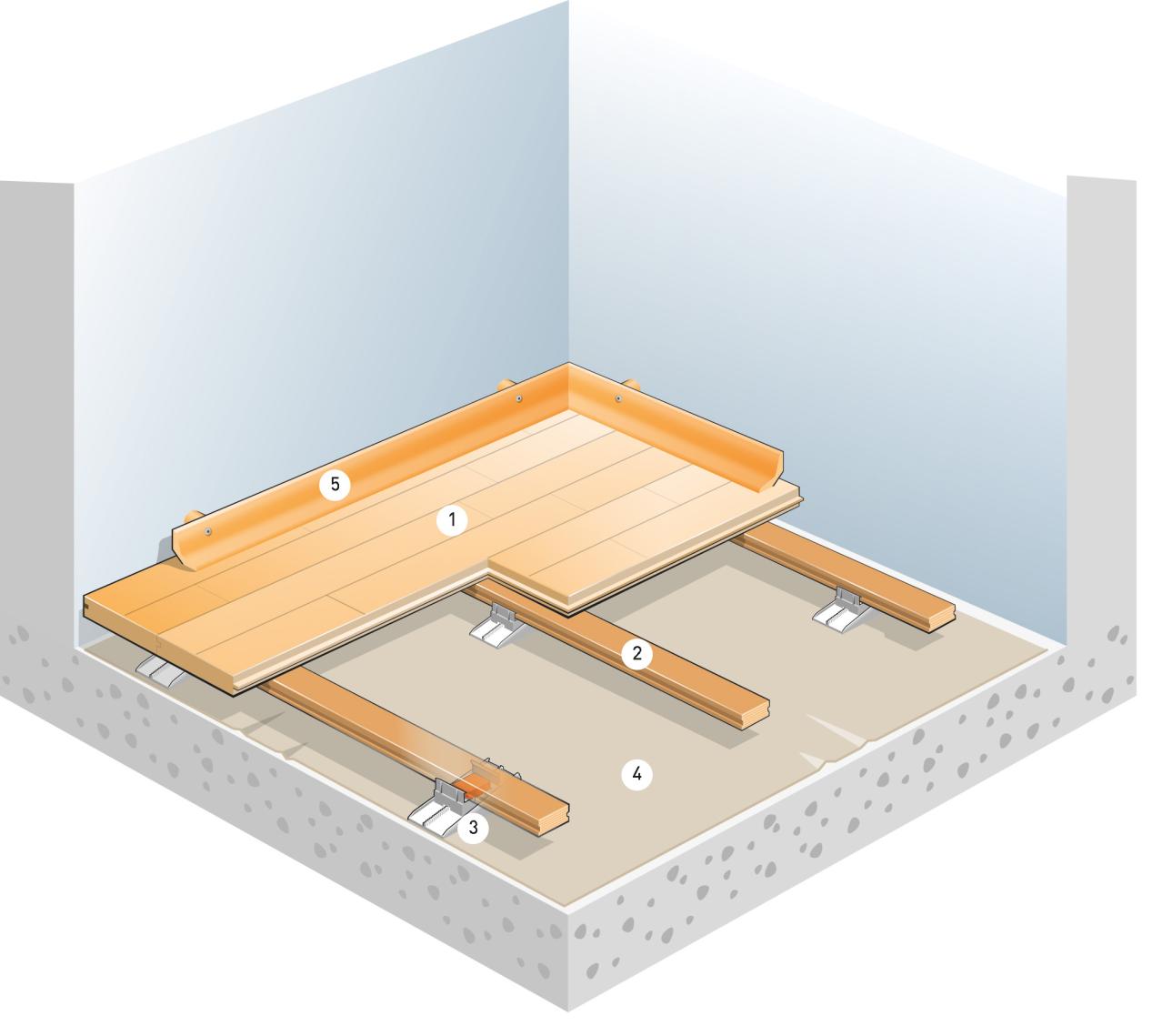

SYSTEM COMPONENTS

1. 22 x 129 x 3700 mm floorboards
2. UnoBat 78+ batten: 27 x 60 x 3360 mm
3. UnoBat 78+ wedge including shockpad
4. PE moisture barrier
5. Combi sports skirting





TEST RESULTS



REQUIREMENTS EN 14904:A4

BATTEN DISTANCE C/C 411MM

BATTEN DISTANCE C/C 336MM

SHOCK ABSORPTION

≥ 55 < 75 %

67 %

64 %

VERTICAL DEFORMATION

≥ 2.3 < 5.0 mm

2.8 mm

2.4 mm

BALL BOUNCE

≥ 90 %

91 %

93 %

FRICTION

≥ 80 ≤ 110

99

99

ROLLING LOAD

≥ 1500 N

3000 N1

3500 N1

POINT LOAD

None

5500 N ~ 550 kgs2

6000 N ~ 600 kgs2

1. Junckers test with solid rubber wheels: width 50mm, diameter 100mm.
2. Junckers test with 100x100mm point load.

More information

TECHNICAL INFORMATION

GENERAL INFORMATION, JUNCKERS SPORTS FLOOR SYSTEMS D 1.0

UNOBAT 78+ BATTEN SPORTS FLOOR, SPECIFIER'S AND INSTALLATION INSTRUCTIONS D 18.1

COMBI SPORT SKIRTING H 2.3

MATERIALS FOR FLOORS INSTALLED WITH BATTENS H 4.0

CHOICE OF FLOORBOARD

A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.

The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech sports floors are dried using Junckers unique press drying method. Our ash and maple sports floors are kiln dried.

Our floors are ready to use as soon as they are fitted. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane lacquer.

All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC™ accreditation.

We guarantee fast and easy installation. Each floor board has a length of 3700mm and covers approx. 0.5 m².
