ARENA MASTER | PORTABLE WOOD FLOOR

The Arena Master Portable Sports Floor features a 7/8” (22 mm) solid hardwood, prefabricated into lightweight panels.

Each portable panel is easily locked in place with pre-attached metal brackets. The panels are joined on all four sides with a tongue and groove connection.

Each panel is constructed with pre-attached strips of 9-ply, 1/2” (12mm) thick birch plywood.  The panels are further reinforced at each end with a ¼” aluminum “L” piece.  When assembling the system over a hard subfloor, the panels are installed over a 5/8” (15 mm) Performance Foam, which provides for ideal shock absorption and resilience.

Transition ramps at the perimeter, frame the floor and provide a strong, protective leading edge.

For fast and flexible installation, Junckers Center-Row Panels can be supplied,making a center start  / two way installation possible.

The portable wooden floor Arena Master is designed for both short and long term use.

Facts

PERFORMANCE

Area-elastic according to EN 14904 class A3

USE

Basketball, Volleyball, Tournaments, Dance

HARDWOOD

Prefinished 7/8” (22mm)  Solid Hardwood

PANEL SIZE

Full panel 20” x 6’ - Half panel 20” x 3’

PANEL WEIGHT

Full panel 44 lbs (19.7 kgs) - Half panel 22 lbs (9.9 kgs)

PANEL CONSTRUCTION

Pre-attached birch plywood and aluminium angle

RESILIENT COMPONENT

5/8” (15 mm) Performance Sports Foam

REQUIRED SUBFLOOR

Most flat, dry existing hard surfaces, including ice rinks
Soft surfaces like rubber, synthetic, turf, and carpet

FLOOR SYSTEM THICKNESS

1 7/8” (49 mm) / 1 3/8” (34 mm) over turf (without foam)

JUNCKERS 25 YEARS FATIGUE TEST

SANDING AND REFINISHING

Yes, to bare wood 8-10 times

COMPATIBLE WITH UNDERFLOOR HEATING

Yes

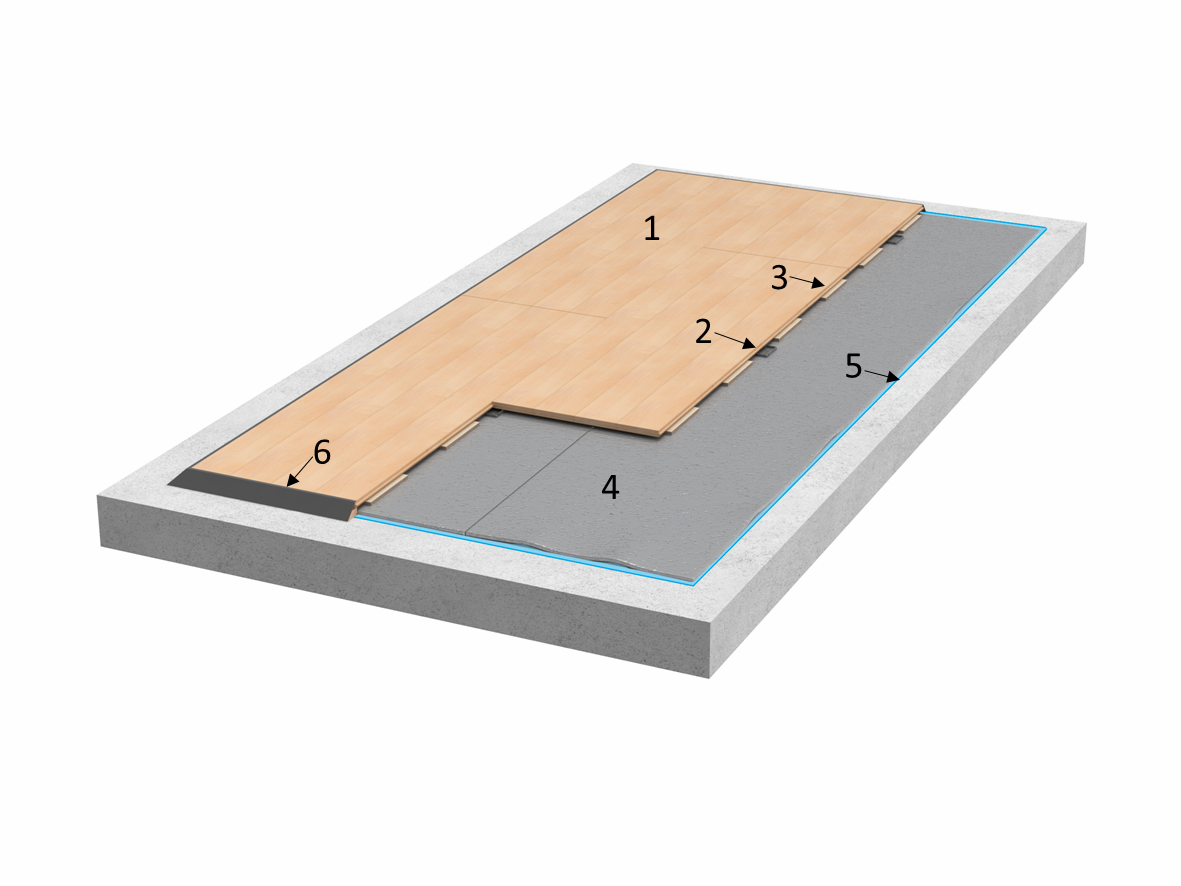

SYSTEM COMPONENTS

  1. Junckers 7/8” (22 mm) solid hardwood panels.
    Full size panel: 20” x 6’, 10 SF
    Half size panel: 20” x 3’, 5 SF

  2. Pre-attached Metal Brackets
  3. Pre-attached Plywood / Aluminum
  4.  Junckers 5/8” Performance Sports Foam
  5. Vapor barrier on concrete, 6 mil Poly
  6. Transition ramp





REQUIREMENTS EN 14904:A3

TEST RESULTS

SHOCK ABSORPTION

≥ 40 < 55 %

50 %

VERTICAL DEFORMATION

≥1.8 <3.5mm

2.1 mm

BALL BOUNCE

≥ 90 %

98 %

FRICTION

≥ 80 ≤ 110

~ 85

ROLLING LOAD

≥ 1500 N

3000 N1

POINT LOAD

None

5000 N ~ 500 kgs2

1) Junckers test with solid rubber wheels, width = 2” (50mm), diameter=4” (100mm).
2) Junckers test with 4” x 4” (100mm) point load.
