PRO COMPLETE 44

The Pro Complete 44 Portable Floor system consists of 7/8” (22 mm) solid hardwood strips. The hardwood strips are preassembled into light weight, hand carried panels.
Pre-attached birch sleepers with polyurethane foam are on the underside of each floor panel. The solid hardwood together with the sleepers have been tested to provide correct shock absorption and resilience.

The floor panels are easily assembled and locked together with pre-mounted metal brackets on each panel.

Lengthwise, all panels have a tongue and groove connection. The ends of the panels are joined using slip tongues.

A supporting and protecting transition ramp forms a strong edge of the floor perimeter.



Facts

PERFORMANCE

Area-elastic according to EN 14904 class A4

HARDWOOD TYPE

Prefinished 7/8” (22 mm) solid hardwood

PANEL SIZE

Full panel 20” x 6’ - Half panel 20” x 3’

PANEL WEIGHT

Full panel 41 lbs. (18,5 kgs) - Half panel 20 lbs. (9,4 kgs)

SYSTEM CONSTRUCTION

Single layer sleeper system

REQUIRED SUBFLOOR

Flat, dry, structurally sound

TOTAL FLOOR SYSTEM THICKNESS.

1 ¾” (44 mm)

JUNCKERS 25 YEARS FATIGUE TEST

SANDING AND REFINISHING

Yes, to bare wood 8-10 times

COMPATIBLE WITH RADIENT HEATING

Yes

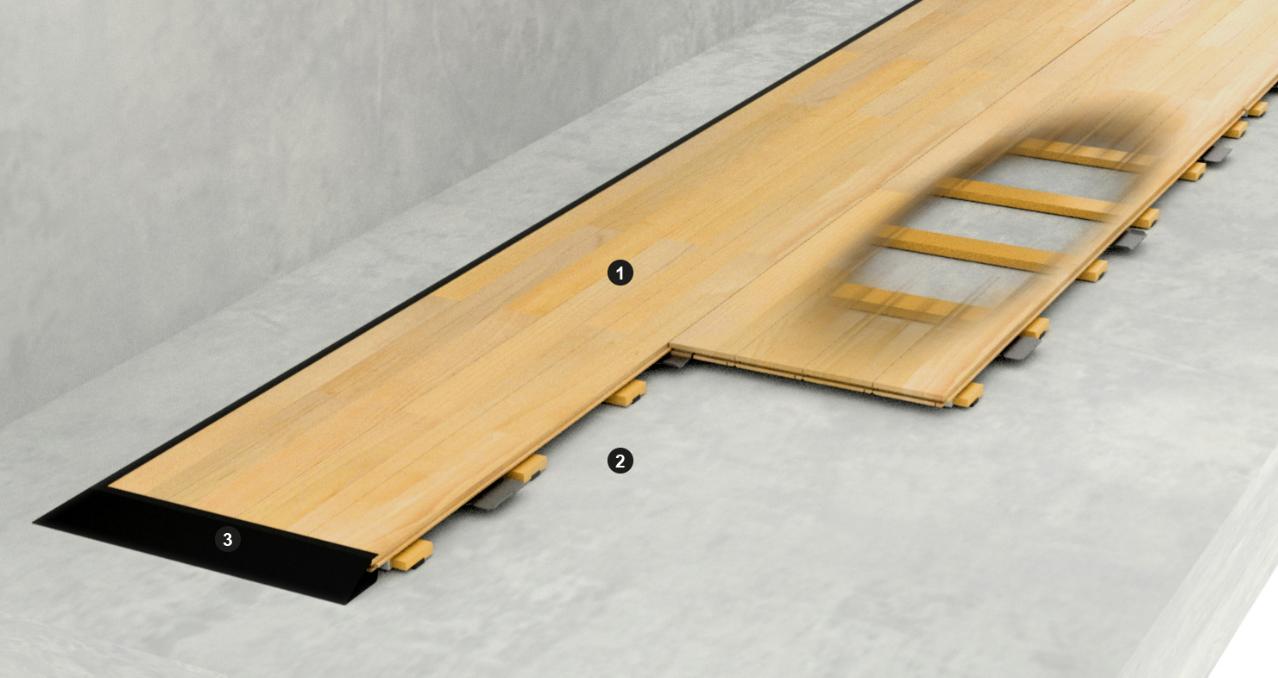

SYSTEM COMPONENTS

1. Floor panels:
- 1/1 panel: 7/8” x 20” x 6'
- 1/2 panel: 7/8” x 20” x 3'
2. Pre-attached sleepers
- 3/4" x 2 3/4" engineered birch sleepers mounted with polyurethane foam.
3. Black painted transition ramp





REQUIREMENTS EN 14904:A4

TEST RESULTS

SHOCK ABSORPTION

≥ 55 < 75 %

60 %

VERTICAL DEFORMATION

≥ 2.3 < 5.0 mm

3.3 mm

BALL BOUNCE

≥ 90 %

95 %

FRICTION

≥ 80 ≤ 110

~ 85

ROLLING LOAD



≥ 3000 N1

POINT LOAD

≥ 1500 N

5000 N ~ 500 kgs2
1. Junckers test with solid rubber wheels: width 50mm, diameter 100mm.
2. Junckers test with 100x100mm point load.
