MATERIALS FOR BATTEN FLOORS

H 4.0

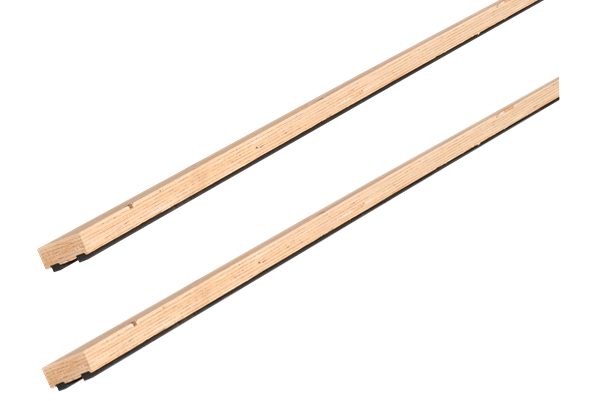

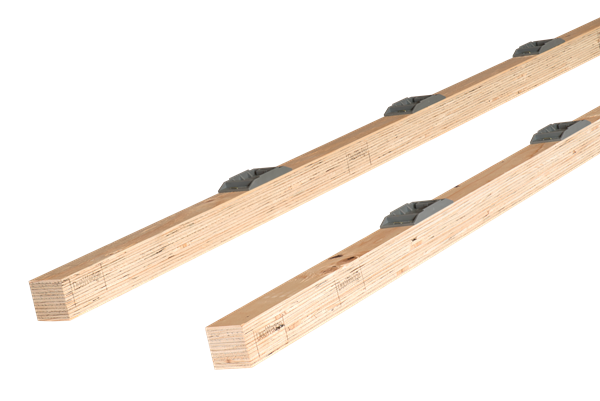

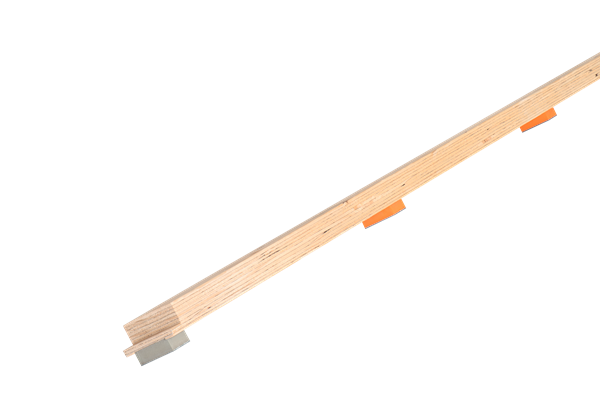

UNOBAT 62+ / DUOBAT 120+ BATTEN

Item no. 099270

  • Batten for Unobat 62+ sports floor, single layer batten system.
  • Upper batten for Duobat 120+ sports floor, double layer batten system.

Bundles of 16 pcs. (length 3.6 m)

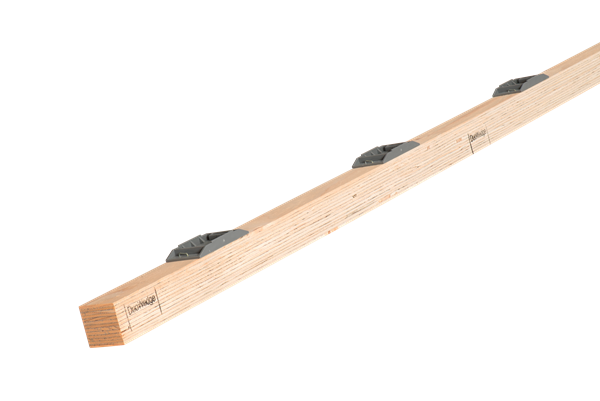

LOWER BATTEN, DUOBAT 120+

Item no. 099271

Lower batten for Duobat 120+ sports floor. Must be used in combination with an upper batten. The system is constructed as a double layer batten system.

Bundles of 16 pcs. (length 3.364 m)

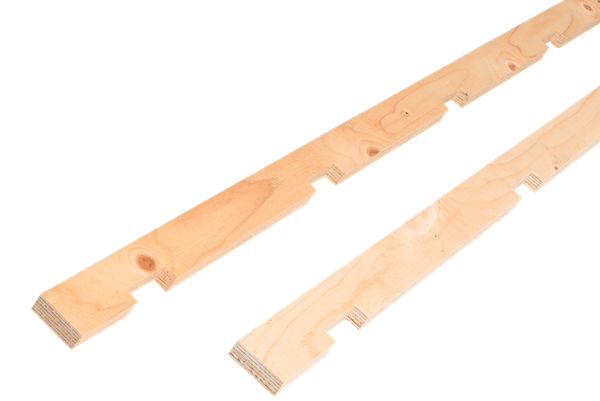

START BATTEN, DUOBAT 120+

Item no. 099274

Start batten for Junckers Duobat 120+ sports floor system.
The batten is used perpendicular to the gable.

Bundles of 16 pcs. (8 pcs. of 3.196 m and 8 pcs. of 1.514 m)




GABLE BATTEN, UNOBAT 62+ / DUOBAT 120+

Item no. 099272

For Junckers Unobat 62+ and Duobat 120+ sports floor system. The battens are used for the first row parallel to gables.

Bundles of 16 pcs. (length 3.6 m).




FACE WALL BATTEN, DUOBAT 120+

Item no. 099273

For Junckers DuoBAT 120+ Sports floor system.
The battens are used for the first row parallel to face walls.

Bundles of 16 pcs. (length 3.364 m).


UNOBAT 45 BATTEN

Item no. 098800

Batten dimension, Height x Width: 19 x 45 mm.
Mounted with 9.0 x 6.3 mm shock absorbing strips.

The shock absorbing strips are inset into a “U” shaped channel on the underside of the batten.
Total batten height 23 mm.

Bundles of 16 pcs. (length 3.6 m).

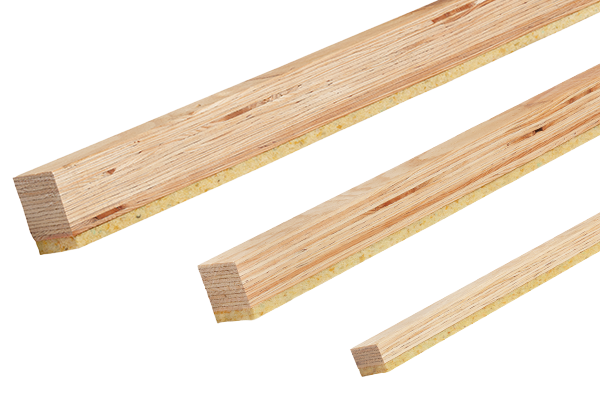

BLUBAT BATTENS

For Junckers Blubat sports floor system.

Bundles of 10 pcs. (length 2.4 m).

Item number

Dimension, h x w

099283

30 x 45 mm

099284

45 x 45 mm

099285

57 x 45 mm

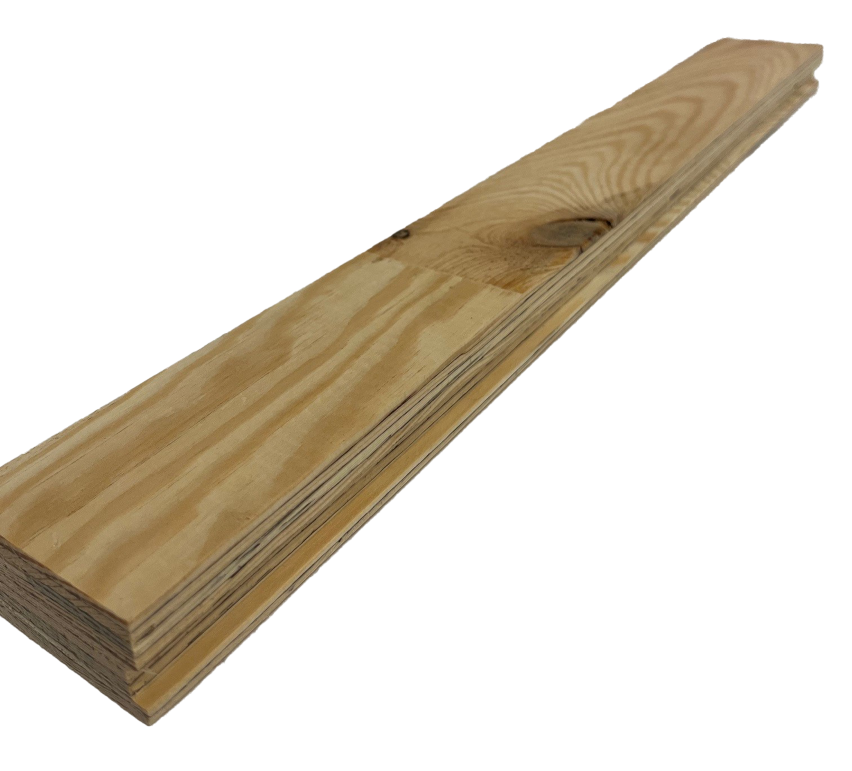

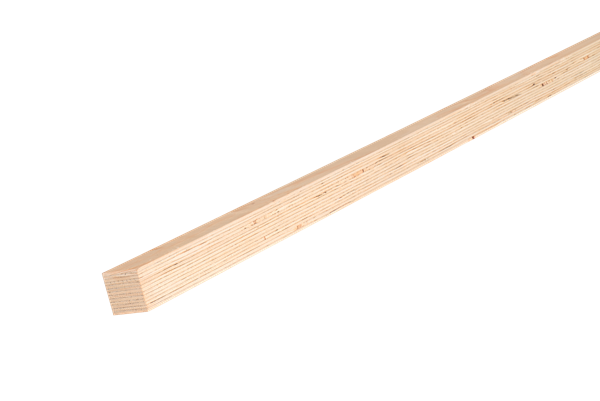

SPACING BATTENS

Tools to help keeping required batten centres.
Bundles of 16 pcs. (length 3.6 m).

Unobat 45 & Blubat
c/c = 411 mm, Item number 099279
c/c = 336 mm, Item number 099289

Unobat 62+
c/c = 411 mm, Item number 099264
c/c = 336 mm, Item number 099263

Duobat 120+
c/c = 400 mm, Item number 099275


LOOSE J-LOCKS

Item no. 099266

For Junckers UnoBAT 62+ sports floor system.
Snap the J-Locks to the shock pads prefixed on the battens.

Pack size: 500 pcs.

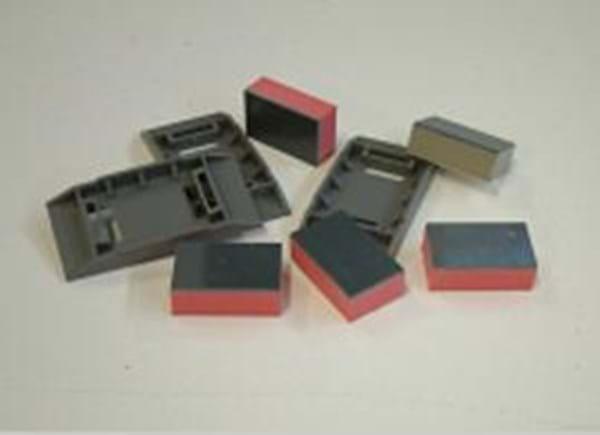

LOOSE J-LOCKS AND SHOCK PADS

Item no. 099265

For Junckers Unobat 62+ and Duobat 120+ sports floor system.

Loose J-Locks and shock pads.

Pack size: 100 pcs. of J-Locks and 100 pcs. of shock pads.

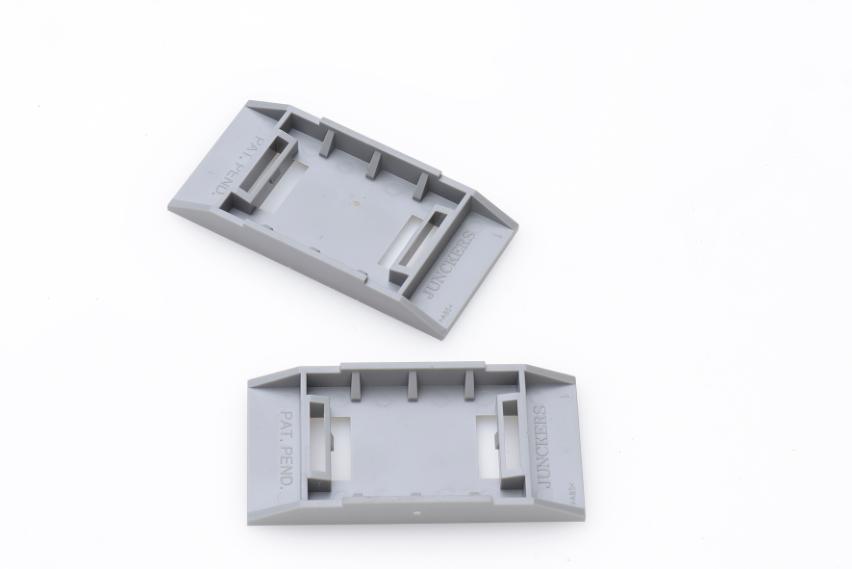

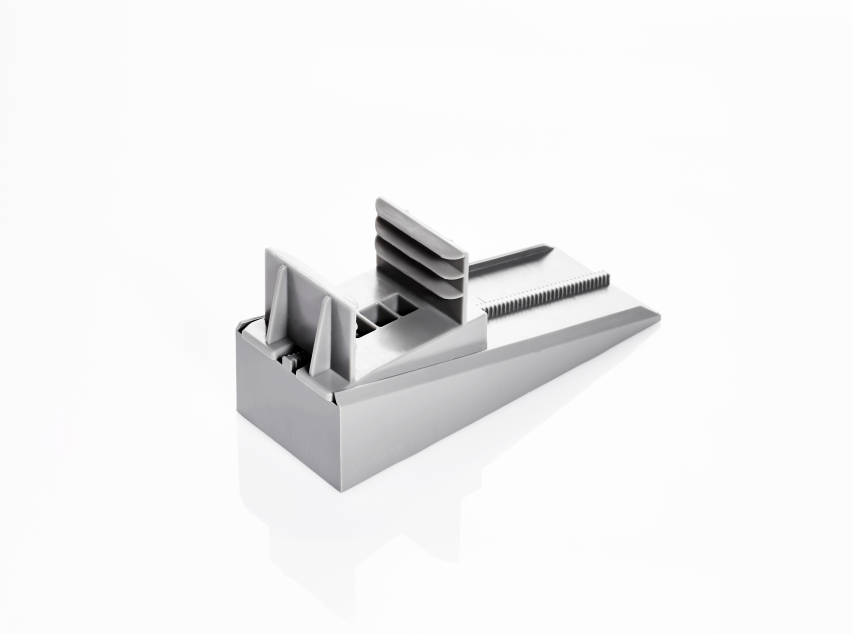

J-LOCK WEDGES

Item no. 099401

For Junckers Unobat 62+ sports floor system.
Adjustable wedge to be clicked onto shock pads prefixed on the batten.

The J-Lock wedge allows for the quick correction of uneven subfloors into flat, ideal playing surfaces. Levelling the floor is conducted without use of nails and tools.

Pack size: 150 pcs.

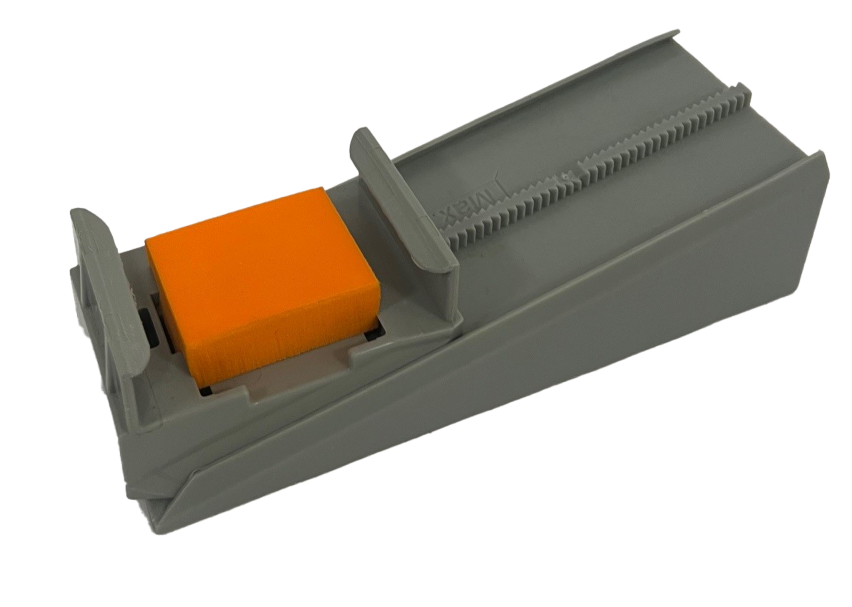

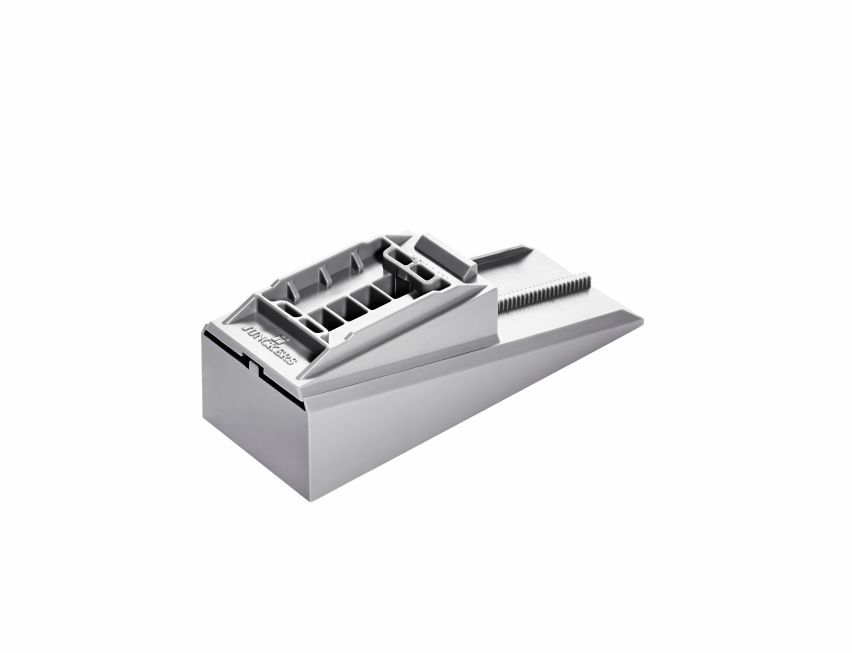

DUO WEDGES

Item no. 099403

For Junckers DuoBAT 120+ sports floor system.

The lower Duobat 120+ batten rests in this adjustable and locking DuoWedge cradle, making it easy to correct even the most complicated subfloors into flat, ideal playing surfaces.

Levelling the floor is carried out without use of nails and tools.

Pack size:150 pcs.

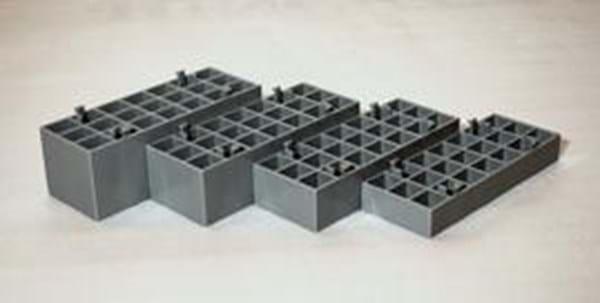

SUPPORT BASES, J-LOCKS WEDGES & DUO WEDGES

Support bases to increase floor height of the Unobat 62+ and DuoBat 120+ sports floor system.

Item number

Dimension

Pack size

099406

20 mm

150 pcs

099407

30 mm

150 pcs

099408

40 mm

100 pcs

099409

50 mm

100 pcs

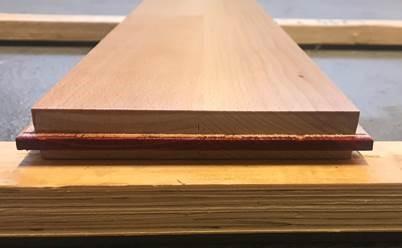

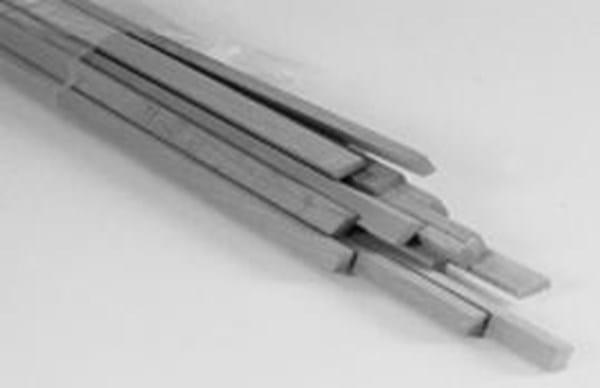

LOOSE TONGUE

Item no. 095900

Loose tongues made of beech wood.
Dimension: 6 x 12 mm

Use: 20.5 and 22 mm flooring.

Pack size: 15 pcs x 600 mm (9 rnm.)

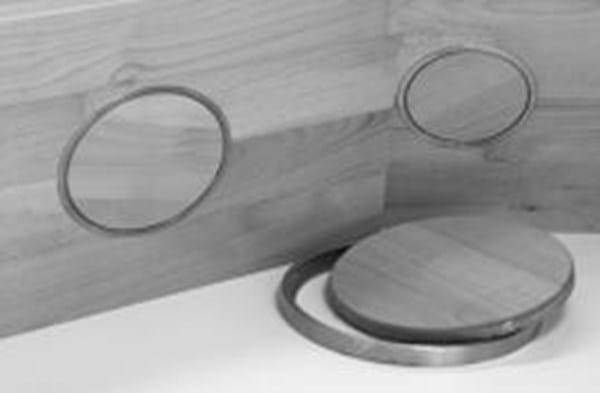

BUSHINGS

Bushing with frame in brass and cover/lid in beech.

Item number

Inner/outer diameter

Pack Size

099115

Ø 75 mm / Ø 95 mm

1 pcs

099116

Ø 106 mm / Ø 126 mm

1 pcs

099117

Ø 150 mm / Ø 170 mm

1 pcs

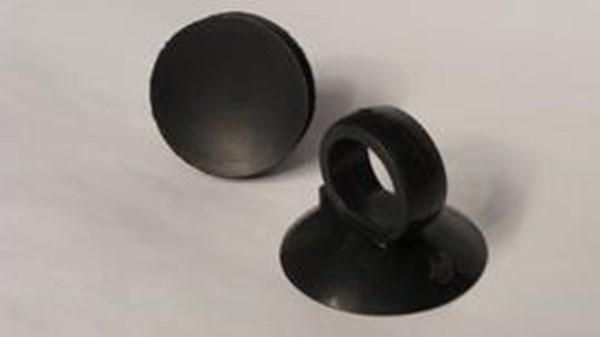

SUCTION CUP

Item no. 099114

Rubber suction cup to lift up the lid of the bushing.

Pack size: 1 pcs.

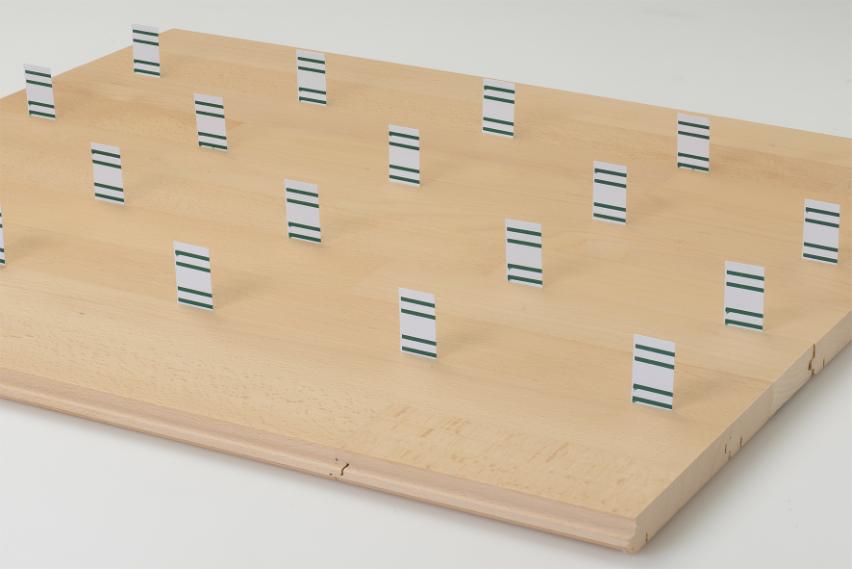

SPACERS

To keep the required 10 board measurement, 10-BM.

Item number

Dimension

Pack size

099031

0.2 mm

300 pcs

099032

0.4 mm

300 pcs

099033

0.6 mm

300 pcs

099034

0.8 mm

300 pcs

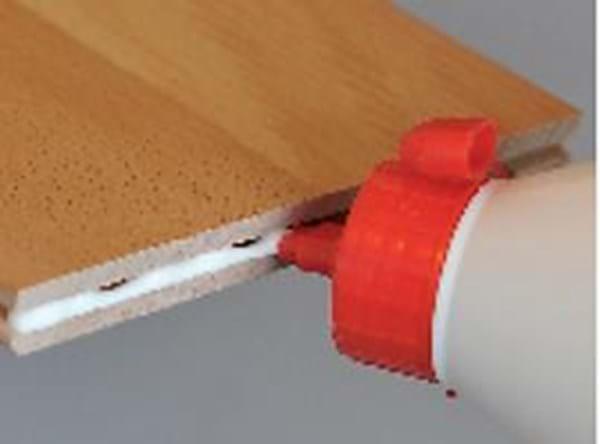

SYLVAFIX HEADER JOINT ADHESIVE

Item no. 099030:

For gluing heatder joints of the floor boards.

Pack size: 0.75 litres

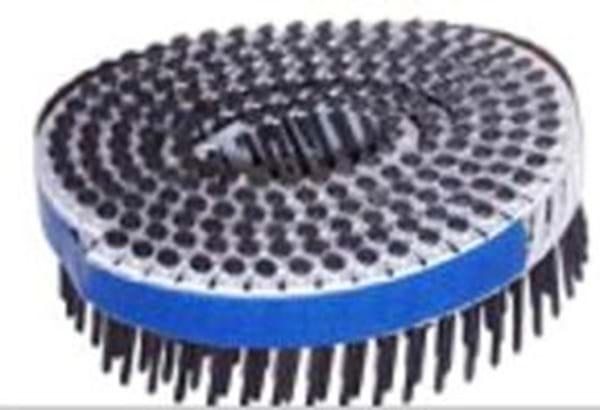

J-NAILS

2.2 x 45 mm machine nails for nailing of 22 and 20.5 mm floors to sports batten systems.

Item number

Pack size

099109

7200 pcs

099107

1200 pcs

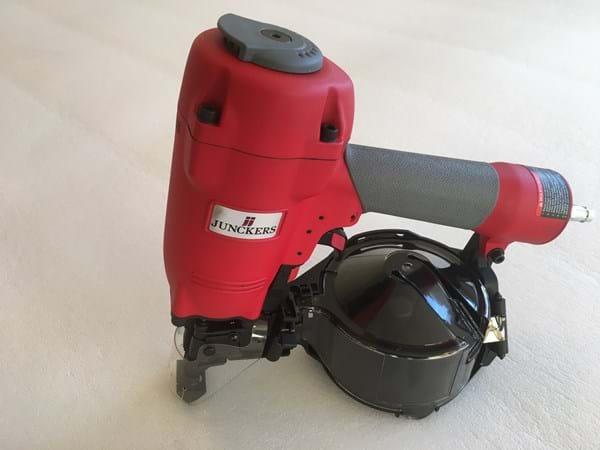

PNEUMATIC NAILER

Item no. 099129

Pneumatic Nailer for Junckers J-nails.




MOISTURE BARRIER

Item no. 099039

0.20 mm PE membran. 4 m wide with marked overlap.

Pack size: Rolls of 100 m². (4 x 25m)

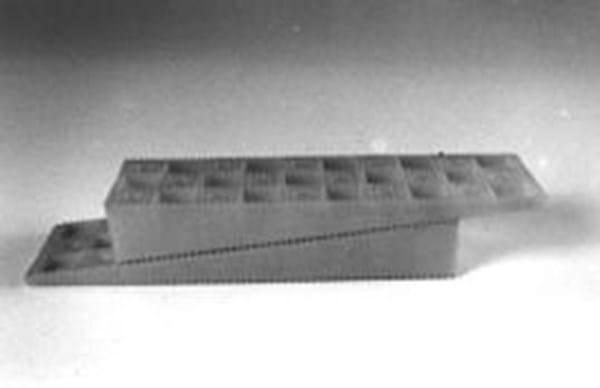

YELLOW WEDGES

Item no. 099001

Plastic wedges to be used as packing material.

Pack size: 162 sets.
